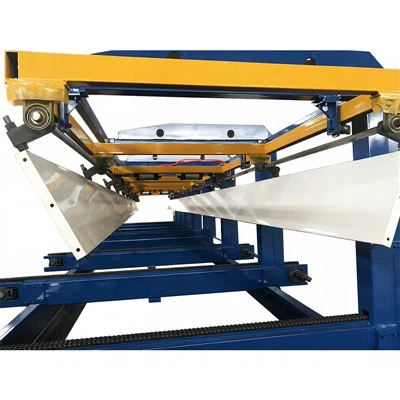

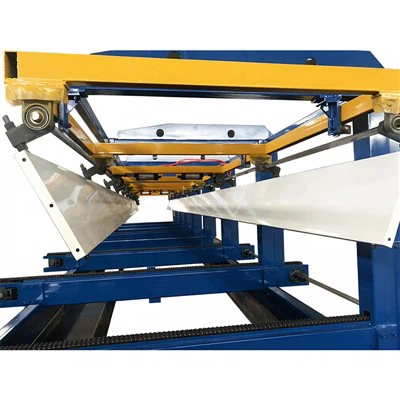

Electric Single Layer Stacking Machine

For palletizing applications that demand high positioning precision and low operational noise, the Electric Single-Layer Stacking Machine represents the optimal choice. Utilizing a servo motor and ball screw drive system, this machine's end effector achieves millimeter-level positioning accuracy, resulting in a stacking neatness that far surpasses that of pneumatic-driven counterparts. On low-to-medium volume production lines within industries such as petrochemicals, food, animal feed, and building materials, this Electric Single-Layer Stacking Machine quietly and precisely executes the single-layer stacking of sheets, boxes, drums, bags, and pallets; it is particularly well-suited for applications where strict requirements exist regarding product aesthetics and stacking uniformity.

The equipment configuration comprises a flattening conveyor, a buffering conveyor, a reorienting conveyor, a pallet magazine, a pallet conveyor, a grouping unit, a pushing mechanism, a stacking unit, and a discharge conveyor. The operational workflow is as follows: after materials are flattened and aligned, they undergo deceleration and buffering, followed by reorientation to adjust their direction; the grouping unit then arranges the items into sets according to a preset pattern, and the pushing mechanism transfers them to the designated stacking position. Pallets are supplied automatically. The electrically driven clamping, gripping, and suction mechanisms can be controlled independently-allowing the execution method to be selected based on the specific characteristics of the materials-to precisely stack the items onto the pallet. As the single-layer stacking height is relatively low, this machine is ideal for products that do not require multi-layer stacking, or for applications where subsequent layers are to be stacked with manual assistance; finally, the completed pallet is discharged via the pallet conveyor.
