Product Overview



Primary Function: Precision cold forming of metal pipes, tubes, and structural profiles into complex 2D and 3D geometries, maintaining structural integrity without wrinkling, flattening, or excessive wall thinning.


Target Workpieces: Round, square, rectangular, and oval tubes produced from carbon steel, stainless steel, aluminum, copper, and specialized titanium alloys.


Target Industries: Automotive exhaust systems, structural chassis frames, HVAC fluid distribution lines, aerospace hydraulic assemblies, and heavy industrial machinery.




  • Fritillary Panel Arc Former
    The Fritillary Panel Arc Former is a roll-curving machine for decorative fritillary panels used in curved interior walls, column cladding, storefront facades and architectural installations. It
  • Pneumatic Bending And Punching Machine
    The Pneumatic Bending And Punching Machine is a pneumatic sheet-metal fabrication station for automotive brackets and clips, electrical enclosure parts and HVAC components. It is used where formed
  • Wavy Tile Arc Bending Machine
    The Wavy Tile Arc Bending Machine curves wave-profile metal roofing tiles for porch covers, pavilion roofs, bus shelters and commercial entrances. It is used by roofing fabricators producing arched
  • Corrugated Plate Curving Machine
    The Corrugated Plate Curving Machine roll-curves corrugated metal panels for arched warehouses, hangars, agricultural shelters and curved building cladding. It is used in metal-panel fabrication for
  • Toothed Profile Rolling Machine
    The Toothed Profile Rolling Machine is a curving machine for toothed-profile metal sheets used in interlocking roofing, industrial cladding and shaped architectural metalwork. It serves fabricators

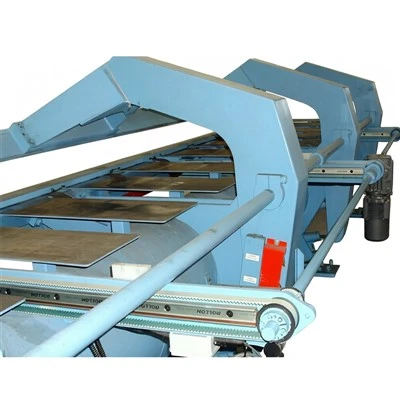

  • Reversible Smooth Arc Rolling Machine
    The Reversible Smooth Arc Rolling Machine curves sheet metal for architectural facades, ceiling features, wall decoration, HVAC components and protective covers. It is used by fabricators producing
  • Smooth Rolling Machine
    The Smooth Rolling Machine is a sheet-metal curving machine for architectural decoration and general fabrication. It is used to produce curved panel sections and formed metal elements for interior
  • Toothed Bending Machine
    The Toothed Bending Machine is a roll-bending unit for toothed metal sheets used in shaped panel assemblies and profile fabrication. It is intended for workshops processing non-flat sheet sections
  • Corrugated Sheet Bending Machine
    The Corrugated Sheet Bending Machine curves corrugated metal sheets for roofing panels and curved building-envelope sections. It is used by sheet-metal fabricators supplying arched covers, roof
  • Corrugated Tile Bending Machine
    The Corrugated Tile Bending Machine is an arc-bending unit for corrugated sheet-metal roofing tiles. It is used by roofing workshops producing curved tile sections for building roofs, entrance covers
  • Fritillary Board Bending Machine
    The Fritillary Board Bending Machine curves decorative fritillary board for interior and exterior architectural work. It is used by panel fabricators producing shaped decorative elements for wall

Product Types & Configurations



Series

Control Axes

Typical Application

Operational Characteristics

NC Series (Single-Axis)

Y-Axis (Feed), B-Axis (Rotate), C-Axis (Bend)

Simple furniture frames, batch production

Hydraulic and PLC logic control; manual or semi-automatic feeding and rotation for 2D configurations.

CNC Multi-Axis (3D - 5D)

Y (Feed) + B (Rotate) + C (Bend) + Drive Assist + Shift Die

Automotive exhaust manifolds, complex structural frames

Servo-driven multi-axis coordination, multi-stack tooling capability, dynamic anti-wrinkle boost control.

All-Electric CNC

Fully Servo-Electric (All axes synchronized)

High-speed, ultra-tight tolerance medical devices and EV components

Zero hydraulic fluid contamination, high energy efficiency, rapid tool setup changeovers.



Key Technical Specifications



Technical Parameter

Specification Range / Standard

Max. Tube Outer Diameter (OD)

10 mm – 220 mm (Custom engineered frames available up to 350 mm)

Max. Wall Thickness (WT)

0.5 mm – 12.0 mm (Material dependent)

Center Line Radius (CLR)

Min. 1 × OD to 3 × OD (Function of mandrel selection and tube wall factor)

Bending Angle Range

0° to 190° (Programmable over-bend compensation)

Bend Angle Repeatability

±0.05° to ±0.1° (Closed-loop absolute encoder feedback)

Control Architecture

Industrial IPC, Windows-based 3D simulation software, direct import compatibility for STEP and IGES files

Electrical Requirements

Standard 380V/415V/480V, 3-Phase, 50Hz/60Hz (Custom transformers available)



Wavy Tile Arc Bending Machine



Applications & Processing Capabilities

Process Scope: Rotary draw bending, compression bending, roll bending, push bending, and integrated end-forming operations.


Material Compatibility:
Carbon Steel (Q235, STKM11A, AISI 1020/1045)
Stainless Steel (AISI 304, 316L, 409, 321)
Aluminum Alloys (6061-T6, 6063)
Copper, Brass, and Inconel aerospace alloys


Typical Part Geometries: Single-radius bends, multi-radius compound stack bends, tight-radius structural elbows, and complex serpentine coils.





Customization & Optional Configurations

Mandrel & Wiper Die Packages:

Multi-ball flexible mandrels designed for thin-wall crease prevention; aluminum-bronze wiper dies engineered to eliminate outer-radius tearing.

Booster Systems:

Hydraulic or servo-driven pressure die boosters that dynamically push material into the bend zone to eliminate thinning on thin-walled stainless steel or titanium components.

Automation Integration:

Automatic bundle loading magazines, multi-axis robotic unloading arms, and inline punching or cutting integration.

Tooling Interchangeability:

Modular quick-change tool posts designed to minimize machine downtime between different tube diameters.





Manufacturing & Quality Control

Structural Rigidness: Heavy-duty welded steel machine frames undergo thermal stress-relief annealing at 600°C to eliminate internal welding stress, followed by CNC gantry milling in a single setup to guarantee absolute axis parallelism.


Drive Mechanics: C5-grade precision ground ball screws and helical rack-and-pinion assemblies coupled with low-backlash planetary gearboxes.


Factory Verification Protocol:
Laser interferometer calibration verifying linear positioning and angular repeatability.
72-hour continuous dry-run endurance cycle under simulated load.
CMM (Coordinate Measuring Machine) verification of sample trial bends before final crating.

Corrugated Plate Curving Machine




Ordering, Delivery & Technical Support

01/

Engineering Feasibility Check: Submit 3D CAD models (STEP/IGES) alongside material specifications; our engineering department evaluates wall thinning and springback limits within 48 hours.

02/

Lead Times: Standard configurations ship in 30–45 days; fully customized automated manufacturing cells ship in 60–90 days.

03/

Commissioning & Training: On-site installation and operator training delivered by factory-certified service engineers, or remote setup supported via secure VPN diagnostics.

04/

Warranty & Spares: 12-month comprehensive warranty covering core mechanical and electrical assemblies; critical replacement components dispatched from regional stock within 24 hours.





Frequently Asked Questions





Q: How do you prevent wall thinning and wrinkling on thin-wall stainless steel tubes?

A: Thin-wall deformation is controlled through a multi-element tooling assembly: a flexible multi-ball mandrel supports the tube interior, a precision-fitted wiper die restrains outer-radius buckling, and a servo-driven pressure die booster feeds material dynamically into the deformation zone during the cycle.

Q: Can the machine calculate springback automatically?

A: Yes. The control software integrates a material database combined with a closed-loop springback compensation algorithm. Following an initial test bend, measured angular variances are entered into the system, and the controller automatically adjusts over-bend parameters.

Q: What CAD file formats are compatible with the CNC controller?

A: The industrial IPC controller imports standard 3D CAD formats including STEP, IGES, and DXF files, automatically converting part geometry into machine-readable YBC coordinate sequences.

Q: What facility utilities are required on the shop floor?

A: Utility needs vary by model. Standard systems require a 380V–480V 3-phase electrical drop and an uninterrupted compressed air supply at 0.6 MPa (6 bar). Hydraulic configurations utilize ISO VG 46 anti-wear hydraulic oil.

Q: What is the standard tooling lifespan, and how is custom tooling handled?

A: Tooling life depends on material hardness and wall thickness (typically 15,000 to 50,000 bends for tool steel). We engineer and manufacture custom mandrels, clamp dies, and pressure dies in-house from alloy tool steel or Ampco bronze according to exact client part drawings.

Q: How is remote technical support managed for overseas facilities?

A: Machines feature secure industrial Ethernet connectivity, allowing our senior service engineers to perform remote system diagnostics, software updates, and PLC parameter adjustments without requiring an onsite visit.



modular-1
Request a Technical Quotation

To generate a precise engineering proposal and formal quotation, please provide the following parameters to our technical sales team:
1. Tube Dimensions: Outer Diameter (OD) × Wall Thickness (WT) in millimeters or inches.
2. Material Specification: (e.g., AISI 304 stainless steel, 6061-T6 aluminum, DOM carbon steel).
3. Bending Geometry: Minimum Center Line Radius (CLR) and required bending angles.
4. Production Requirements: Batch volumes and annual output projections (to determine manual versus automated feeding layouts).

We're well-known as one of the leading pipe bending machine manufacturers and suppliers in China, also support customized service. Please feel free to buy advanced pipe bending machine made in China here from our factory. For pricelist, contact us now.
