Roof Panel Forming Machine

Send Inquiry
Roof Panel Forming Machine
Details

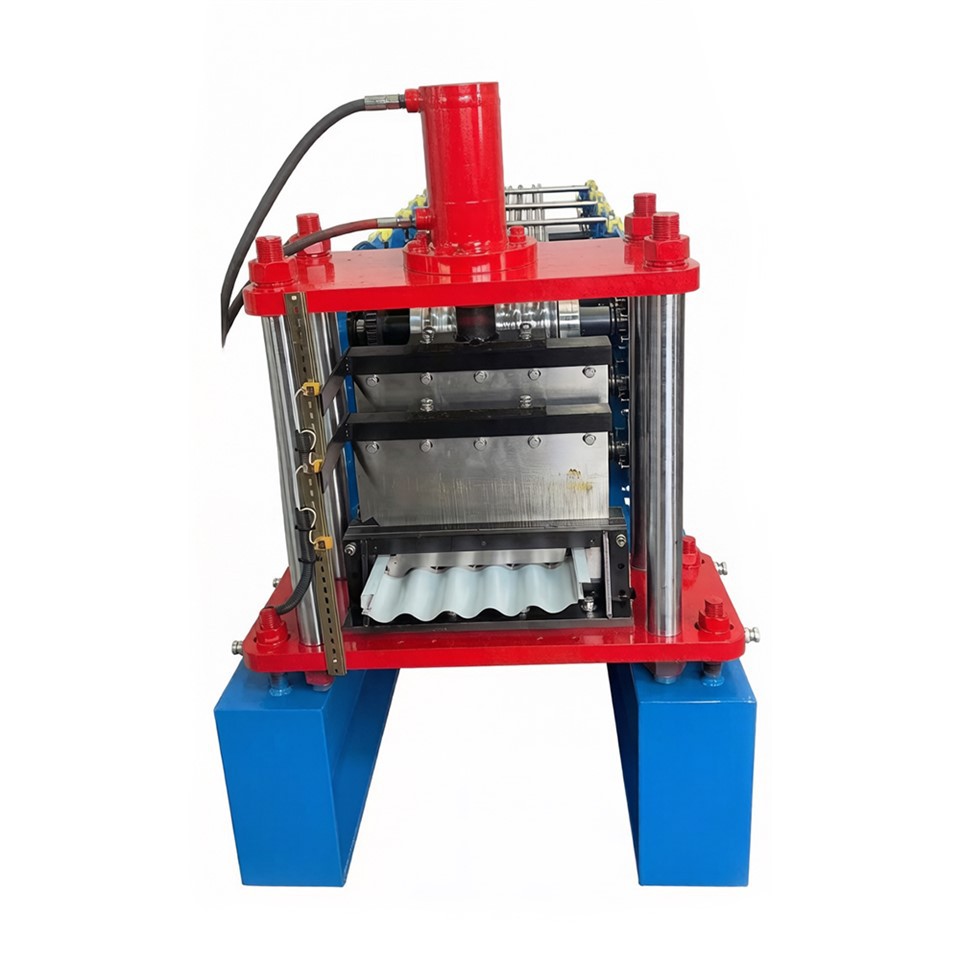

The Yuanding Roof Panel Forming Machine converts metal coil into profiled roofing sheets for residential roofs, commercial buildings and industrial facilities. It is used in roof-sheet production plants and metal building component workshops supplying new-build and reroofing projects.
Category
Molding Main Unit
Share to
Description

Product Overview



The Yuanding Roof Panel Forming Machine converts metal coil into profiled roofing sheets for residential roofs, commercial buildings and industrial facilities. It is used in roof-sheet production plants and metal building component workshops supplying new-build and reroofing projects.

product-1080-810

Core Advantages





Production-Speed Control for Long Roof Runs
A 7.5–15 kW variable-frequency drive supports a forming-speed range of 15–25 m/min. For repeated long sheets of the same section, the operator sets the roll speed to suit the production run instead of relying on a single fixed motor speed.
Supported Roll Shafts Under Forming Load
The forming assembly uses 70 or 80 mm diameter 45# steel shafts and an H300–450 base configuration. As the roof profile takes shape across multiple stands, these structural members support the roll positions under load, maintaining the relationship between the forming tools along the machine.
Low-Abrasion Contact on Pre-Painted Surfaces
Hard-chrome-plated rollers are polished after precision machining. During production of exposed roof sheets, the smooth contact faces limit tool-to-coating rubbing at the ribs and flat areas, so the forming process does not depend on a later paint operation to conceal avoidable tooling marks.
Touchscreen Length and Quantity Setting
PLC control places production length and sheet quantity at the operator interface. When a roof schedule changes from one eave-to-ridge length to another without changing the section, the operator updates the cutting program rather than measuring and marking each sheet individually.

product-1080-810

Custom Roof Panel Forming Machine

Provide the roof-section drawing and the building panel schedule together with the coil grade. Yuanding prepares the forming sequence and general arrangement for approval, then builds the machine around the specified panel system and factory layout.

Customizable Items

  • Roof-rib pattern
  • Rib spacing and crown shape
  • Cover width
  • Side-lap and edge details
  • Coil width and thickness specification
  • Coil-loading arrangement
  • Discharge and stacking arrangement
  • Control-panel language

Key Specifications



Parameter

Specification

Material Thickness

0.4–0.8 mm

Forming Stations

18–26 stations

Forming Speed

15–25 m/min

Motor Power

7.5–15 kW (with frequency conversion)

Drive Method

Motor drive, gear chain transmission

Blade Material

Cr12Mov (heat-treated)

Machine Base

H300–450



Quality Control





Purchased bearings, valves, cylinders and electrical components are matched to the approved bill of materials. Their nameplates and supply ratings are checked before installation, with nonconforming components held outside the assembly process.

Tool contours are measured against the roll drawings to ±0.02 mm. This is a tooling inspection criterion, not a blanket tolerance for every finished panel dimension. Frame datums and station alignment are checked separately.

Factory testing includes a dry run followed by coil forming and cutting. The inspection record identifies the trial material, finished section and measured output length. The machine is released after acceptance of the trial and its supporting records.



FAQ



Q: How is the equipment packed for export?

A: The main machine is normally shipped uncrated; small components are packed in wooden boxes.

Q: Can you provide a sample before ordering?

A: Retained trial-run pieces of standard profiles are supplied free when available; complete machine samples are not normally provided.

Q: Is the roof sheet cut before or after roll forming?

A: After roll forming, by a shear guided on two cylindrical rails.

Q: What commissioning assistance is available?

A: Yuanding provides on-site installation and commissioning or video guidance, as arranged for the project.
